ARDEX WPM 1000 (20m x 1.4m) | WPD Group

*To be installed by certified installer*

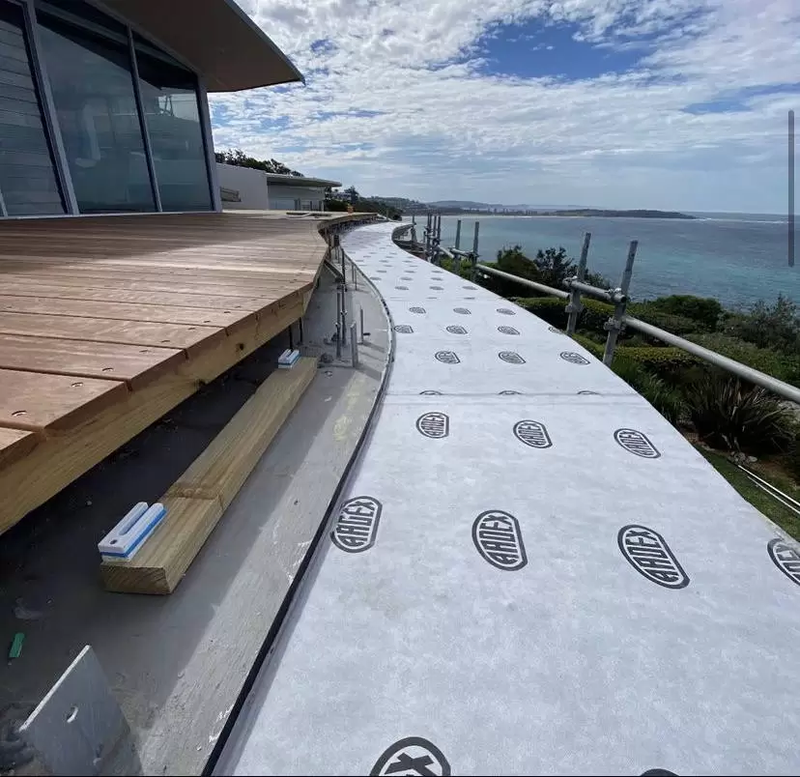

ARDEX WPM 1000 Weldable Waterproofing Membrane is a versatile rubber membrane that can be heat welded. It is suitable for waterproofing underground tanking, rooftops, decks, undertile, canal and pond linings. ARDEX WPM 1000 is made up of synthetic rubber with properties which resist ageing from heat, sunlight and ozone and is heat weldable.

Polypropylene filaments are welded onto both sides of the membrane for better wetting by water based adhesives. It has excellent gas impermeability and toughness and remains flexible at low temperatures. Laps and corners are to be heat formed and/ or welded. Tiling can be done directly on the membrane after 60 minutes with common ARDEX tiling adhesives like X18.

• Sheet membrane for waterproofing tiled areas
• Tiling can begin 60 minutes after membrane installation
• Thin & consistent waterproofing gauge
• Available with a unique clamp waste outlet
• Conforms to AS4654.1 – Waterproofing membranes for external above-ground use Materials

Substrates:

• Plywood & Timber (must have a maximum moisture content of 20% when Undertile Butynol is adhered)
• New and old concrete (please read the product datasheet before using ARDEX WPM 1000 on this substrate)
• Fibre cement compressed sheet
• Closed cell polyurethane foam
• Wet wall linings i.e. Gib Aqualine, VillaBoard

Thickness/weight:

• 1.2mm

Elongation:

• 300%

Dimensions:

• 1.4m x 20m (W x L)

Primer Options:

• WA 98 Adhesive

Downloads:

Ardex WPM 1000 PDS

Ardex WPM 1000 SDS

Ardex WPM 1000 VOC

Ardex WPM 1000BranzAS4654 Report

Ardex WPM 1000 Branz AS4858 Report

Ardex WPM 1000 AS2904

Weldtec Product Brochure
